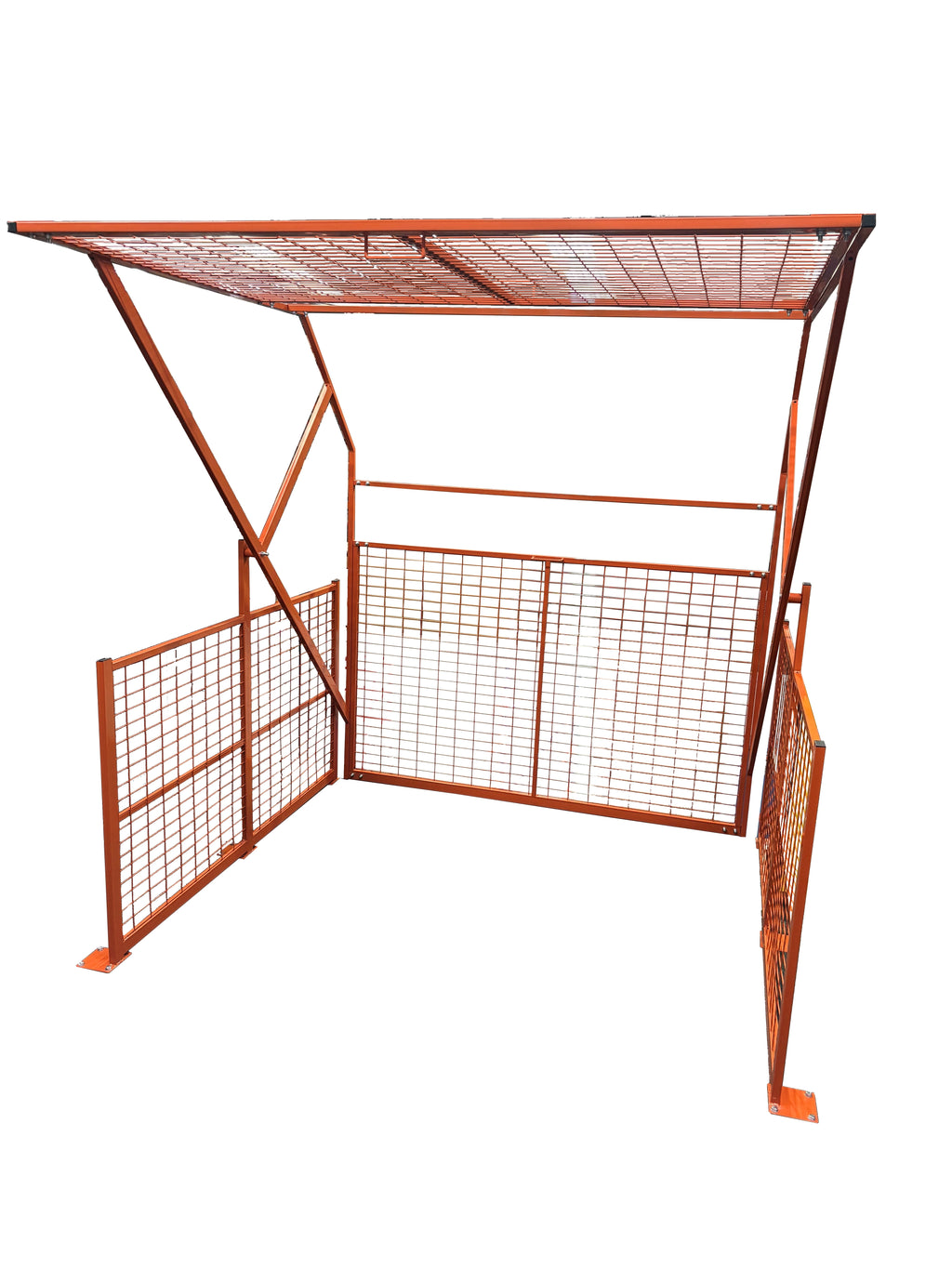

Mezzanine Gate – Roll Over Safety Gate 2000 x 2300
The ReadyRack mezzanine gate is a heavy-duty roll over safety gate designed to provide safe and compliant pallet loading access on mezzanine floors. Built for warehouse and industrial environments, this mezzanine safety gate ensures continuous edge protection while loading and unloading pallets at height.
Certified to Australian Standard AS1657-2018, this mezzanine loading gate is engineered to reduce fall risks, improve operational safety, and support compliance across a wide range of applications.
What is a Mezzanine Gate?
A mezzanine gate is a safety system installed at the edge of mezzanine floors to allow safe pallet loading and unloading while maintaining edge protection at all times. Also referred to as a mezzanine safety gate or pallet gate, it ensures that operators are never exposed to an open edge during pallet transfer.
Mezzanine gates are commonly used in warehouses, factories and distribution centres where forklifts are used to move pallets between ground level and elevated storage areas.
Product Overview
This mezzanine roll over gate features a dual-frame safety system designed to eliminate exposed edges during operation. When the front gate is lowered to receive a pallet, the rear guardrail automatically raises, maintaining a continuous barrier between personnel and the mezzanine edge.
Manufactured from heavy-duty steel with reinforced rotating frames, this mezzanine pallet gate is built to withstand demanding warehouse environments while delivering reliable, long-term performance.
Key Benefits of This Mezzanine Gate
- Maintains continuous edge protection during pallet loading
- Reduces fall risk on mezzanine levels
- Certified to Australian Standard AS1657-2018
- Dual-frame design prevents exposed edges during operation
- Suitable for high-frequency pallet handling environments
- Heavy-duty steel construction for industrial use
- Can be installed on new or existing mezzanine floors
Where Mezzanine Gates Are Used
This mezzanine gate is ideal for:
- Warehouses handling palletised goods
- Manufacturing facilities
- Distribution centres
- Retail back-of-house storage areas
- Any mezzanine floor requiring safe pallet transfer
What’s Included
- 1 x roll over mezzanine safety gate
- All required hardware for assembly
Specifications
-
Model: MEZZRGM.2000.2300.PB
-
Overall Width: 2000mm
-
Overall Height: 2300mm
-
Side Panel Width: 1900mm
-
Side Panel Height: 1365mm
-
Frame Type: Rotating dual-frame design
-
Construction: Heavy-duty steel mesh panels
-
Finish: Powder coated industrial finish
-
Operation: Manual roll over pivot system
-
Floor Fixing Required: Yes (M12 floor bolts recommended)
-
Application: Mezzanine pallet loading protection
Designed for pallet loading zones on mezzanine floors. Not designed for personnel access.
Compliance & Safety
This mezzanine gate is certified to Australian Standard AS1657-2018, ensuring it meets strict safety requirements for elevated work platforms.
Using a compliant mezzanine safety gate helps businesses meet workplace safety obligations while significantly reducing the risk of falls during pallet loading and unloading. It is a critical component in maintaining a safe and compliant mezzanine system.
Why Choose a Roll Over Mezzanine Gate?
A roll over mezzanine gate provides a safer alternative to traditional swing gates by ensuring that one side of the opening is always protected.
The dual-frame design eliminates the risk of exposed edges during operation, making it ideal for environments where pallet transfer occurs frequently and safety is a priority.
Installation & Integration
This mezzanine gate is suitable for:
- New mezzanine installations
- Retrofitting to existing mezzanine platforms
Installation requires secure fixing to the floor slab using appropriate anchors.
FAQs
What is the purpose of a mezzanine gate?
A mezzanine gate provides safe access for loading and unloading pallets while preventing falls from elevated platforms.
Do mezzanine gates need to comply with Australian Standards?
Yes, mezzanine gates should comply with AS1657-2018 to ensure they meet safety requirements for elevated work areas.
Can this mezzanine gate be installed on an existing mezzanine?
Yes, this gate can be retrofitted to most existing mezzanine structures, provided adequate fixing points are available.
What is the difference between a roll over gate and a swing gate?
A roll over gate maintains continuous edge protection during operation, whereas a swing gate can leave the edge exposed when open.
Assembly Instructions
For mezzanine gate assembly instructions, click here
