Introducing our robust Pallet Racking system, offering supreme organisation and storage efficiency for your warehouse or industrial space. Crafted for durability and reliability, this Single Bay of Pallet Racking is meticulously engineered to meet your storage needs.

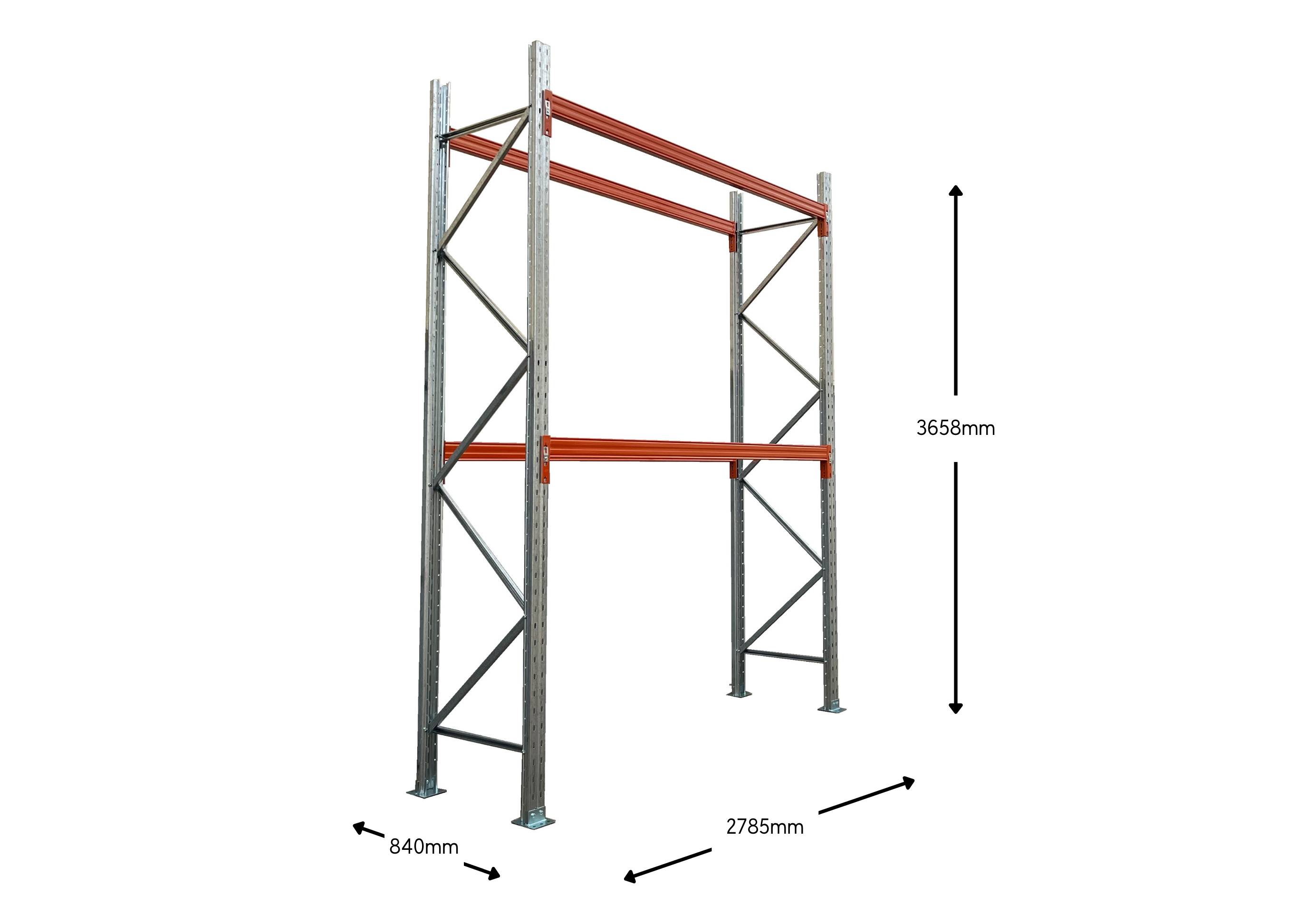

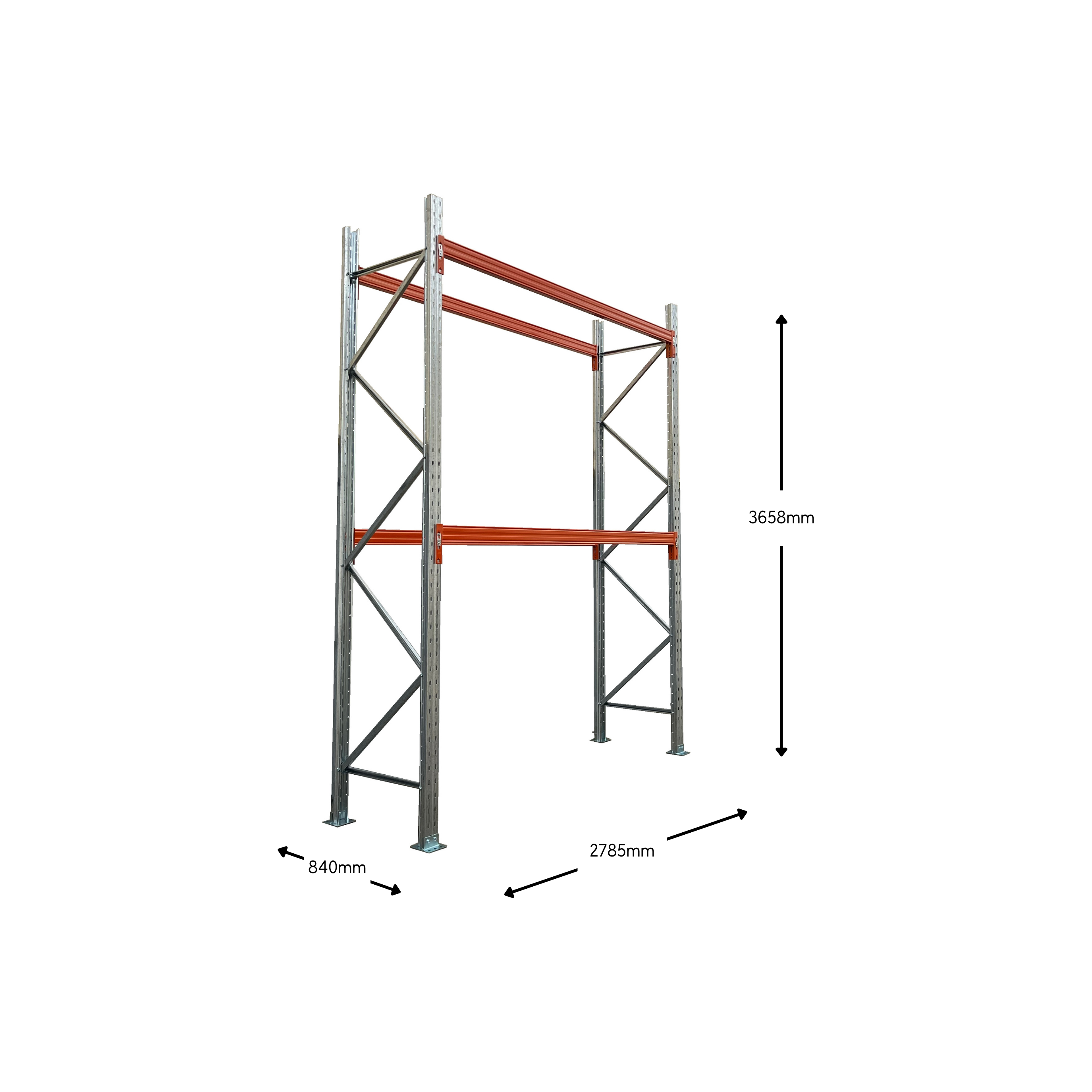

Standing tall at 3658mm high, with a generous width of 2785mm and a depth of 840mm, this racking system provides ample space to accommodate your inventory, ensuring maximum utilisation of vertical and horizontal space. With two levels included, each boasting an impressive 2 tonne Uniformly Distributed Load (UDL) rating per level, you can trust in its strength and stability to support your goods securely.

This comprehensive package comes complete with all the essentials for hassle-free assembly, including base plates and levelling plates, alongside sturdy 3658mm high frames and 2591mm beams. With easy DIY installation, setting up your storage solution is a breeze.

Elevate your storage capabilities with our Pallet Racking system, designed to streamline your operations and optimise your space.

2 x Frames: Each galvanised frame measures 3658mm x 840mm, comes fully assembled and dexion compatible, ready to be installed. These sturdy frames provide the foundation for your pallet racking system, ensuring stability and durability.

Includes Uprights, Bracing, Nuts and bolts, Base Plates, Leveling Plates, and Screw Bolt Floor Fixings.

4 x Beams: Measuring 2591mm x 100mm, each with two safety clips. These beams are designed to support your pallets and provide maximum weight-bearing capacity. With four beams included, you'll have ample support for your storage needs.

Beams:

Dimensions: 2591mm x 100mm
Load Capacity: Supports up to 2000kg uniformly distributed load (UDL)
Pitch: 76.2mm
Connector Lugs: Equipped with 76.2mm pitch connector lugs for secure assembly

Frames:

Material: Constructed from durable galvanised steel
Load Capacity: Each frame can hold a maximum weight of 10000KG per side, with a uniform load
Maximum Beam Height: Bottom beam should not exceed 1800mm for optimal stability

Overall Dimensions 3658mm high x 840mm deep x 2785 wide

ReadyRack is Melbourne based and deliver state-wide.

INTERSTATE AND COUNTRY VICTORIA CUSTOMERS PLEASE READ:

ReadyRack offers interstate delivery services. Please add your items to the cart and select Request Quote.

Alternatively, if you would like to use your own freight provider, please select “pick up” at the checkout and email info@readyrack.net.au for pack size.

We endeavour to deliver the goods between the hours of 8:00am and 4:00pm Monday to Friday (excluding Public Holidays and non-trading days)

A forklift must be supplied by the customer at the time of the delivery, unless stated/discussed prior and arranged by ReadyRack.

HAND UNLOAD

In accordance with OH&S and ReadyRack policies, no one is allowed on the ReadyRack truck.

Our drivers are not required to hand unload. Please make sure you have at least two abled bodies to unload the truck.

We do not do curb side delivery/drop off. If your delivery arrives and there are no one/no abled bodies to unload the contents, our truck will return to the warehouse where the customer can collect or reschedule delivery at their own expense.
