The Double-sided cantilever racking add-on bay is a perfect extension for businesses looking to expand their existing storage capacity for long and heavy items like timber, pipes, and other bulky materials. This add-on bay seamlessly integrates with your current racking system, maintaining the same robust design and easy access from both sides. Customisable in height, width, and depth, it ensures that your expanded storage remains efficient and adaptable to your needs. Constructed from high-quality steel, this add-on bay is built to handle heavy loads, providing the same durability and reliability as your main racking system.

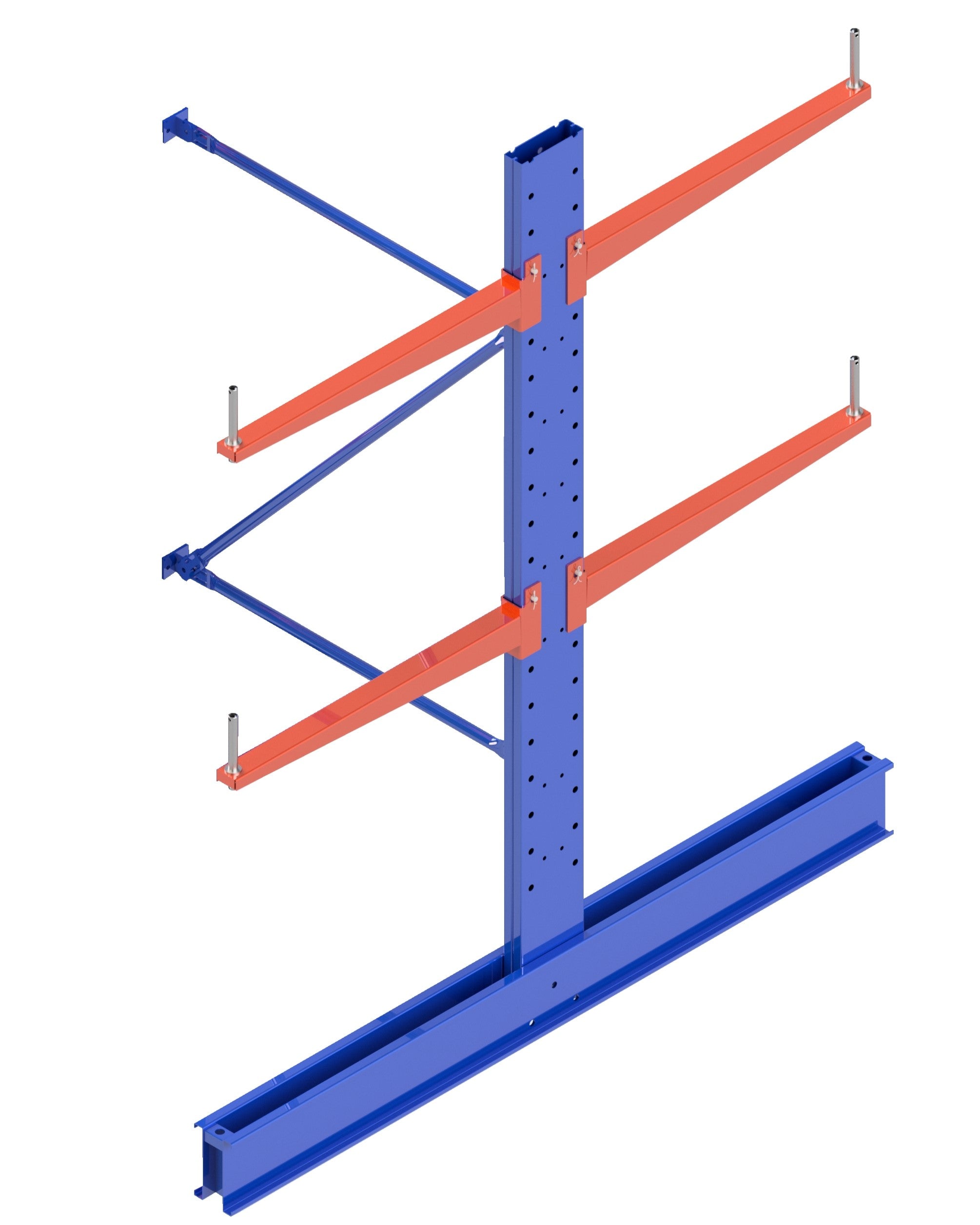

• 1 x Column
• 1 x Double-sided base
• Cross bracing
• Arms (4 arms per 2400mm high column, 6 arms per 3600mm high column)
• All necessary hardware for assembly, including leveling plates and floor fixings
• Safe Working Load Sign


To add more arms click here

Not quite what you're looking for? Contact us!

• Column Height & Arm Capacity:
  • 2400mm high columns: 4 arms per column

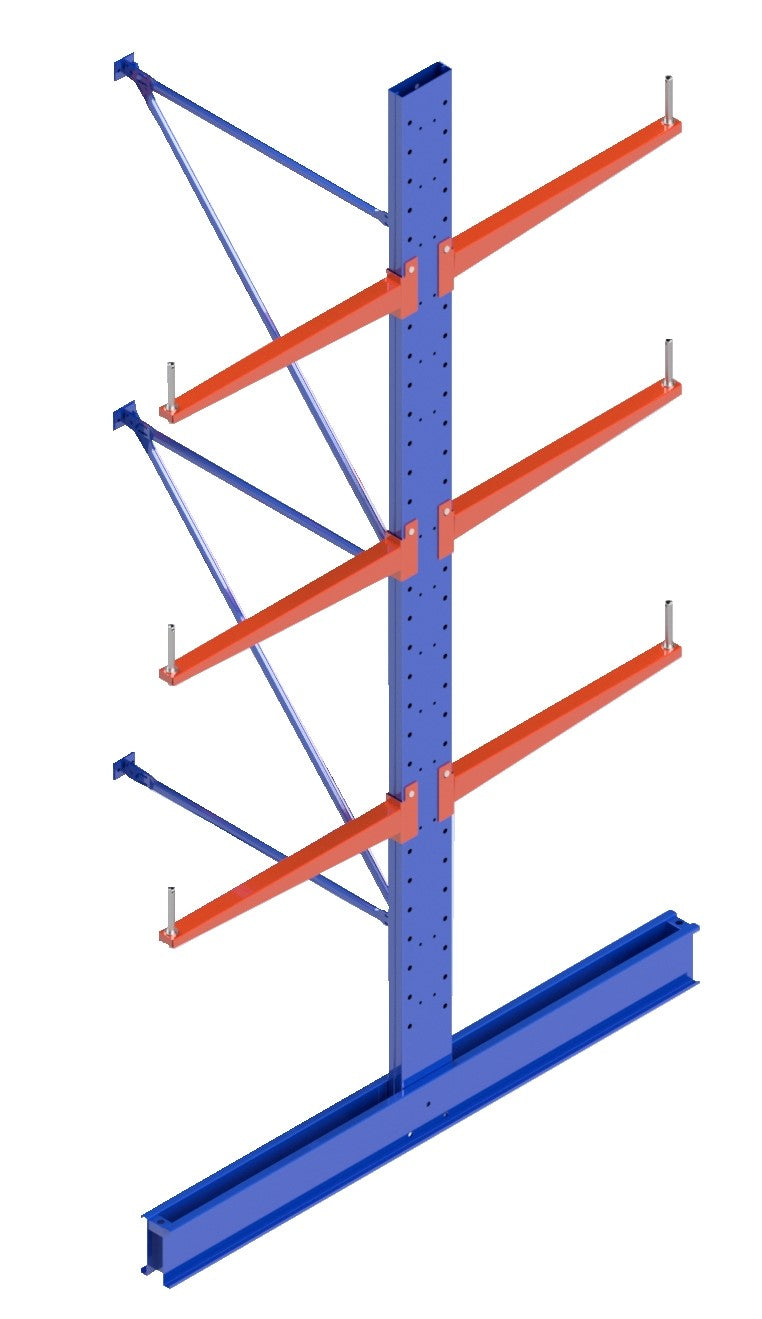

  • 3600mm high columns: 6 arms per column
  • Additional arms available for purchase

• Weight Loading per Column:
  • 2400mm high column with 900mm deep arm: 2100kg
  • 2400mm high column with 1200mm deep arm: 1700kg
  • 3600mm high column with 900mm deep arm: 2800kg
  • 3600mm high column with 1200mm deep arm: 2200kg

• Weight Loading per Arm:
  • 900mm arm: UDL of 480kg (960kg per level across 2 columns)
  • 1200mm arm: UDL of 270kg (540kg per level across 2 columns)

• Dimensions:
  • Overall depth for 900mm deep: 1150mm
  • Overall depth for 1200mm deep: 1450mm

UDL = Uniformly Distributed Load
