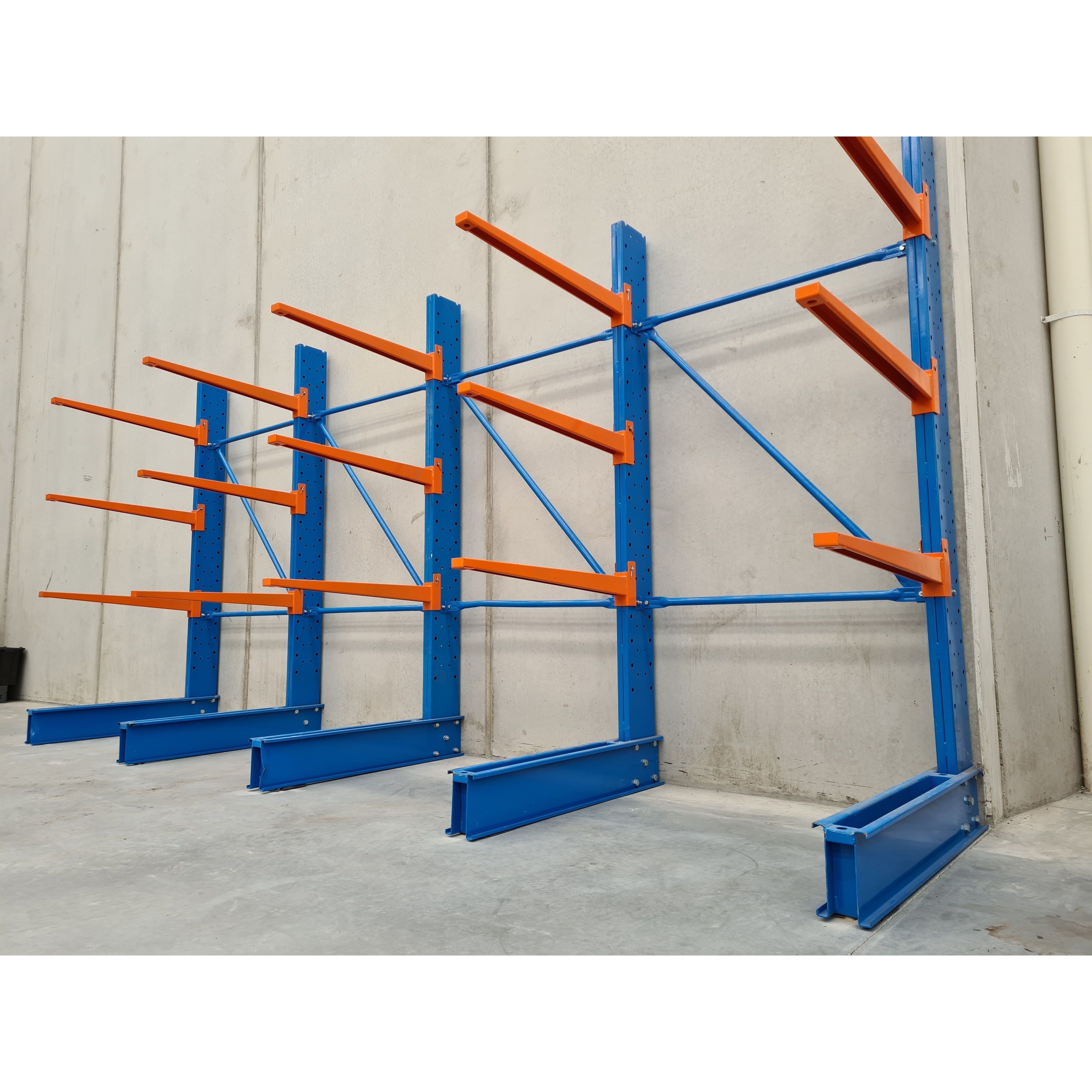

Our Medium Duty Cantilever Racking is the perfect storage solution for businesses handling long, heavy items like timber, pipes, and other bulky materials. Designed to maximise space and provide easy access, these racks offer both flexibility and durability. They can be customised in height, width, and depth to suit your storage needs, and easily adjusted to handle varying loads. Made from high-quality steel, these racks are built to withstand heavy loads and harsh environments, making them ideal for warehouses, manufacturing plants, and commercial settings.


  • 4 x Columns
  • 4 x Single-sided bases
  • Cross bracing (available in 900mm, 1200mm, or 1500mm wide bay column centers)

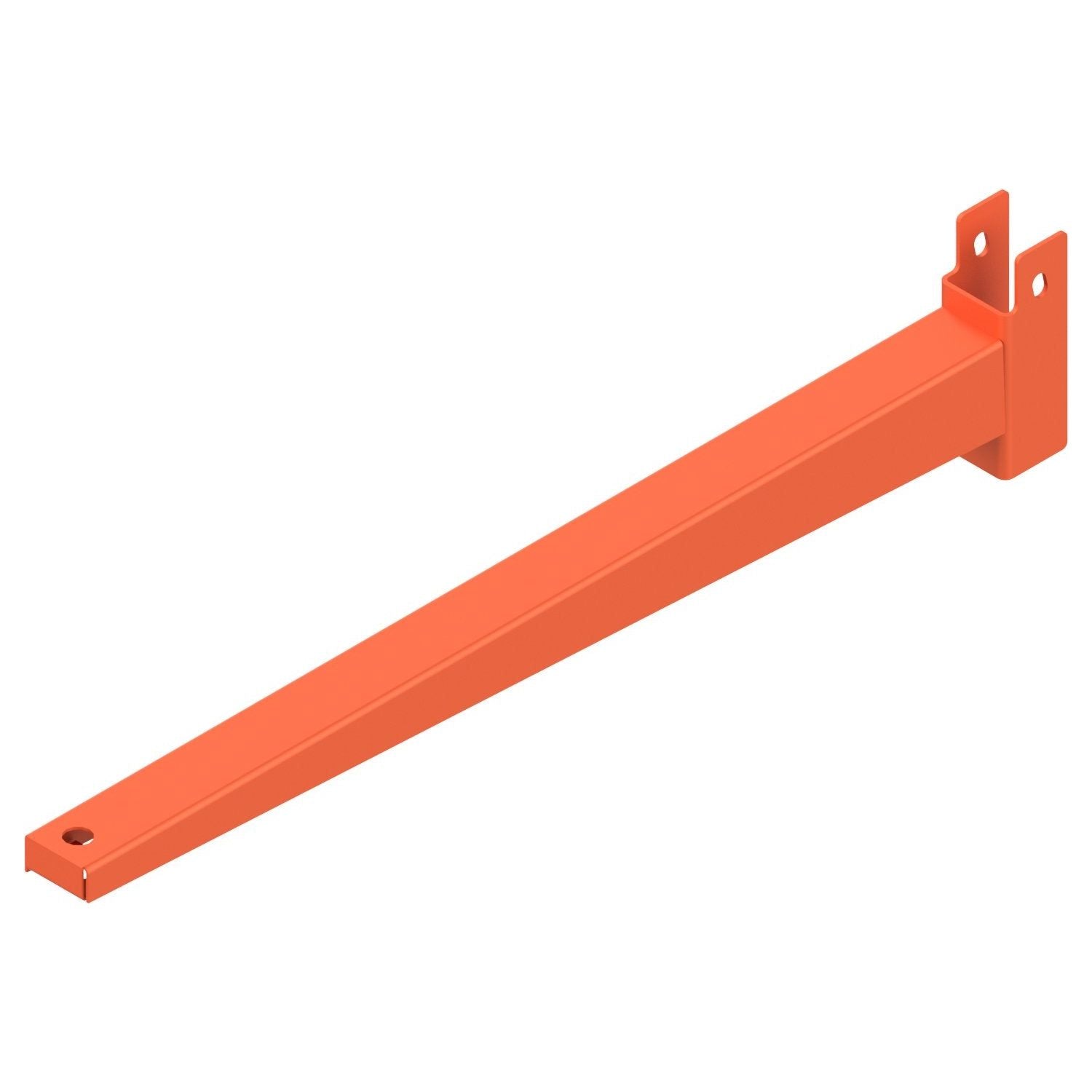

  • Adjustable arms
  • Levelling plates and floor fixings
  • Safe Working Load Sign
  • All necessary hardware for assembly



  • Column Heights:
    • 2400mm (with 2 arms per column)

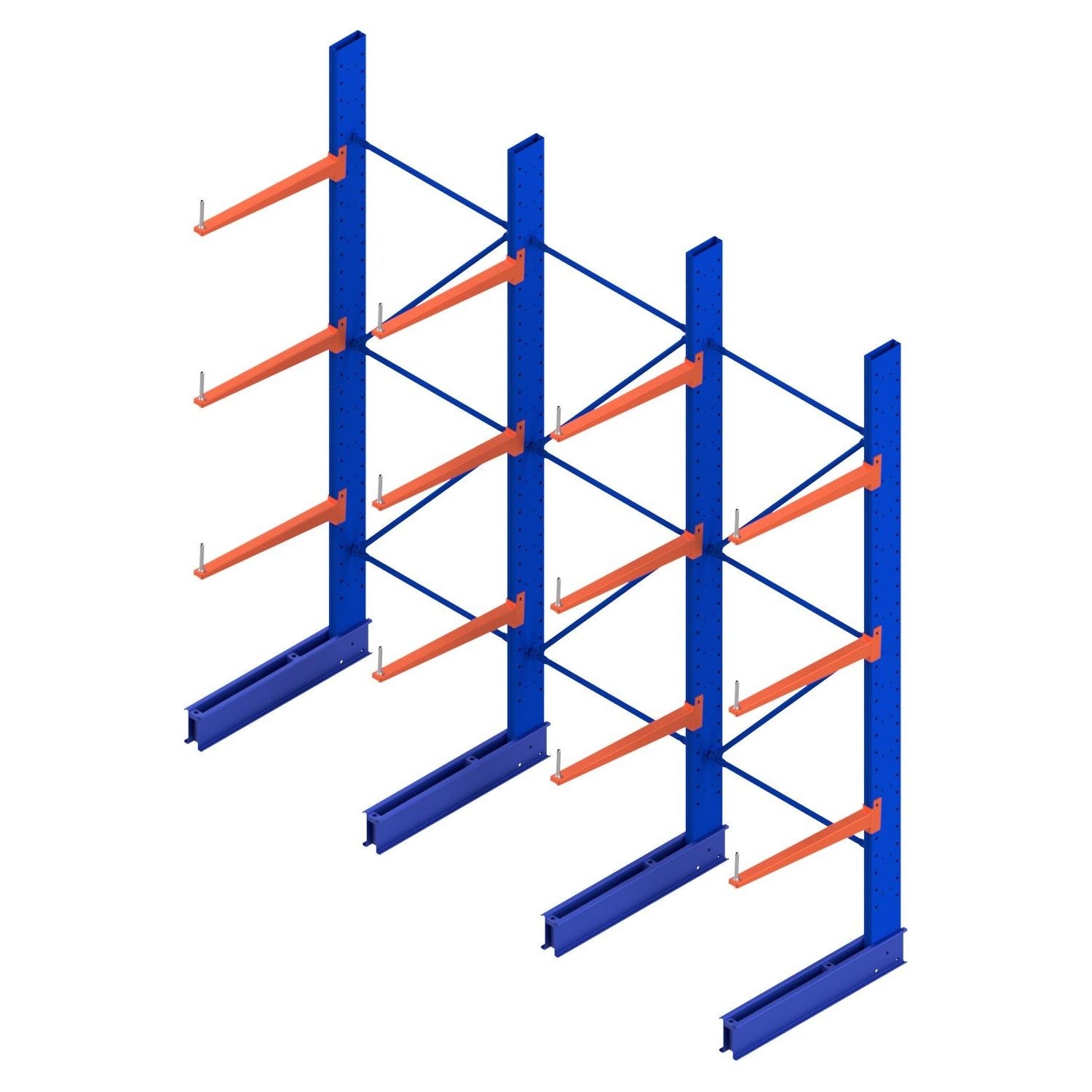

    • 3600mm (with 3 arms per column)
    • Additional arms available separately
  • Weight Loading per Column:
    • 2400mm with 700mm arm: 2600kg
    • 2400mm with 900mm arm: 2100kg
    • 2400mm with 1200mm arm: 1700kg
    • 3600mm with 900mm arm: 2800kg
    • 3600mm with 1200mm arm: 2200kg
  • Weight Loading per Arm:
    • 700mm arm: 600kg UDL per arm (1200kg per level across 2 columns)
    • 900mm arm: 480kg UDL per arm (960kg per level across 2 columns)
    • 1200mm arm: 270kg UDL per arm (540kg per level across 2 columns)
  • Overall Depth:
    • 700mm deep arms: 950mm
    • 900mm deep arms: 1150mm
    • 1200mm deep arms: 1450mm

Note: 700mm arms are not supplied with 3600mm high columns.


Overall width for 3 bays @ 1200mm wide bay = 3720mm


ReadyRack is Melbourne based and deliver state-wide.


INTERSTATE AND COUNTRY VICTORIA CUSTOMERS PLEASE READ:


ReadyRack offers interstate delivery services. Please add your items to the cart and select Request Quote.


Alternatively, if you would like to use your own freight provider, please select “pick up” at the checkout and email info@readyrack.net.au for pack size.


We endeavour to deliver the goods between the hours of 8:00am and 4:00pm Monday to Friday (excluding Public Holidays and non-trading days)


A forklift must be supplied by the customer at the time of the delivery, unless stated/discussed prior and arranged by ReadyRack.


HAND UNLOAD

In accordance with OH&S and ReadyRack policies, no one is allowed on the ReadyRack truck.


Our drivers are not required to hand unload. Please make sure you have at least two abled bodies to unload the truck.


We do not do curb side delivery/drop off. If your delivery arrives and there are no one/no abled bodies to unload the contents, our truck will return to the warehouse where the customer can collect or reschedule delivery at their own expense.

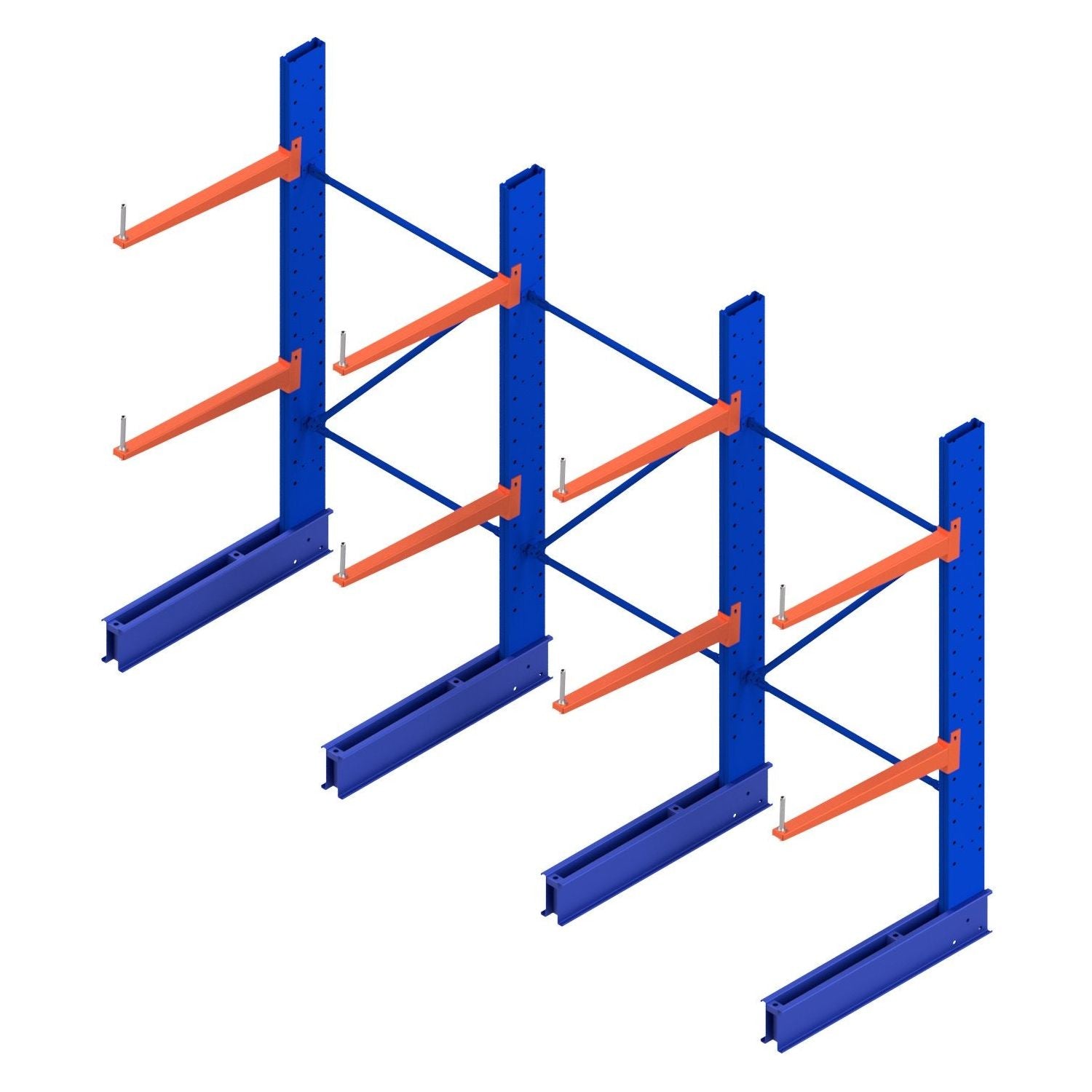

Medium Duty Cantilever Racking Three Bay Single Sided

SKU: MDC.1.3.2400.900.700.2A
Regular price $1,332.00
Sale price $1,332.00 Regular price
GST included.

Visit our warehouse and inspect the stock.

Delivery services over all Australia.

Racking is certified to the latest steel standards.

Everything in stock and ready to go!
