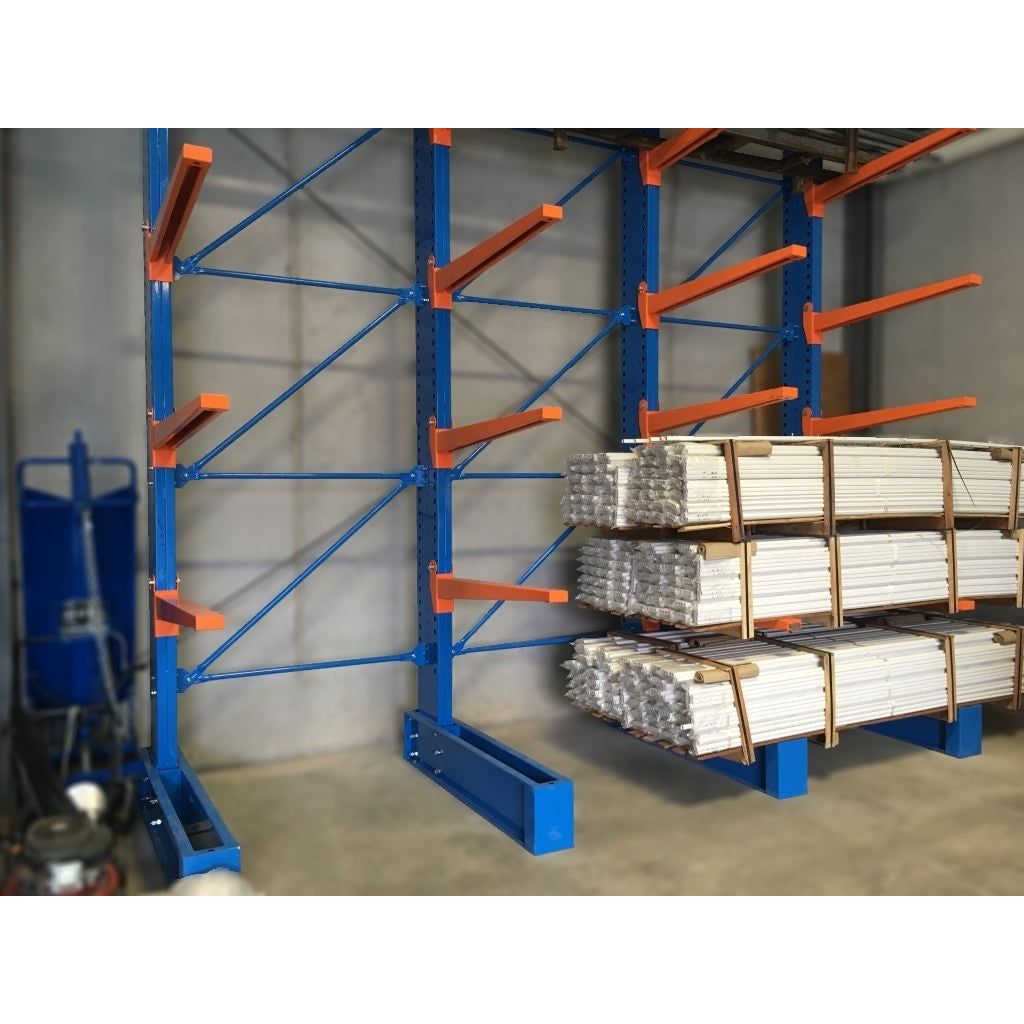

Heavy duty cantilever racking is a versatile and durable storage solution for large and heavy items. With its sturdy, single-sided design and adjustable arms, it is perfect for storing long and bulky items such as steel bars, lumber, and pipes. The cantilever arms extending from vertical columns, creating a clear and accessible storage space that allows for easy loading and unloading with forklifts or cranes. The heavy-duty construction and powder-coated finish ensure the longevity and durability of the racking system, making it an ideal choice for warehouses, manufacturing facilities, and other industrial applications. With customisable configurations and a range of sizes and load capacities, heavy duty cantilever racking can be tailored to fit any storage needs.

Not quite what you're looking for? Contact us!

Single Sided Package Includes: 1 x columns, 1 x single sided bases, cross bracing, arms and all hardware for assembly including levelling plates and floor fixings.

Safe Working Load Sign included

Please note:

Arms per Column

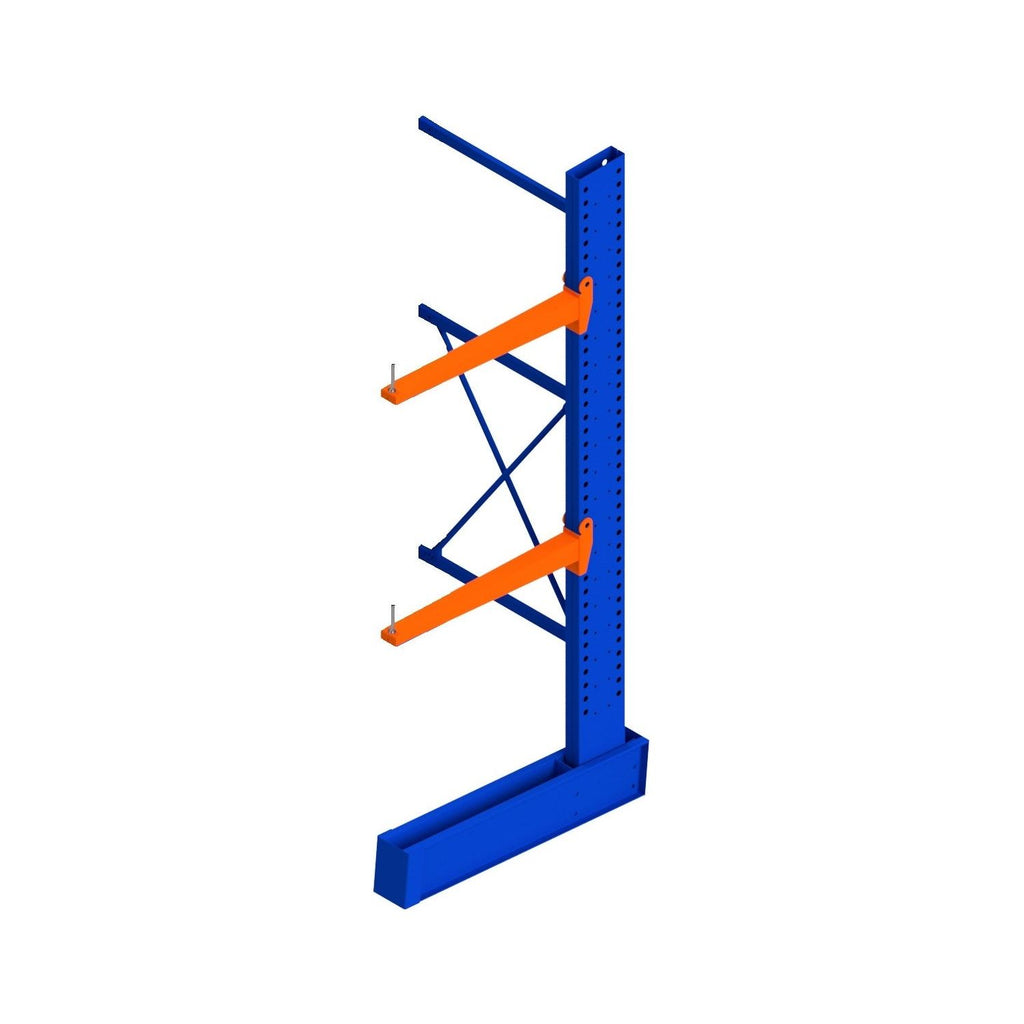

All 3658mm hight columns come with 2 arms per column

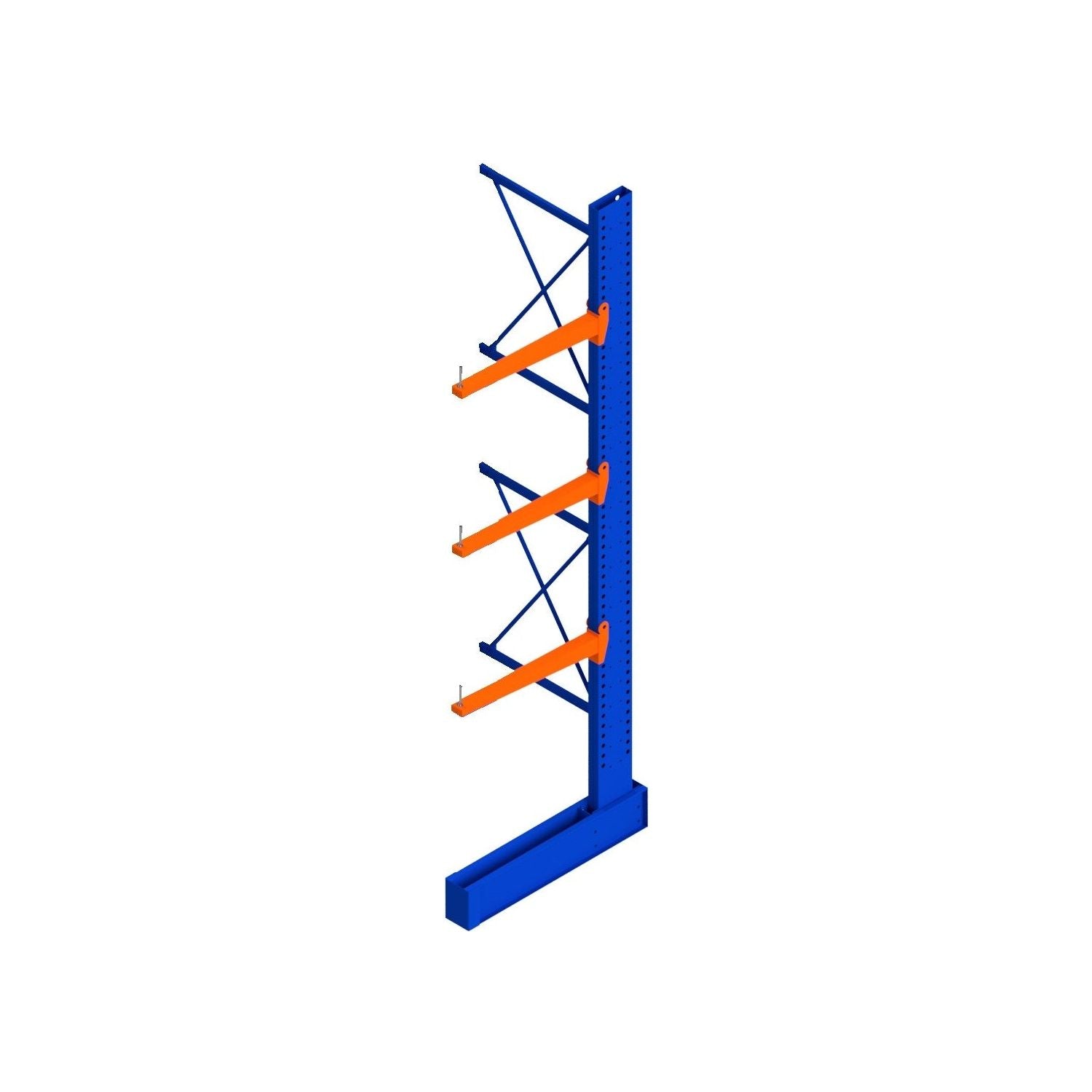

All 4877mm hight columns come with 3 arms per column

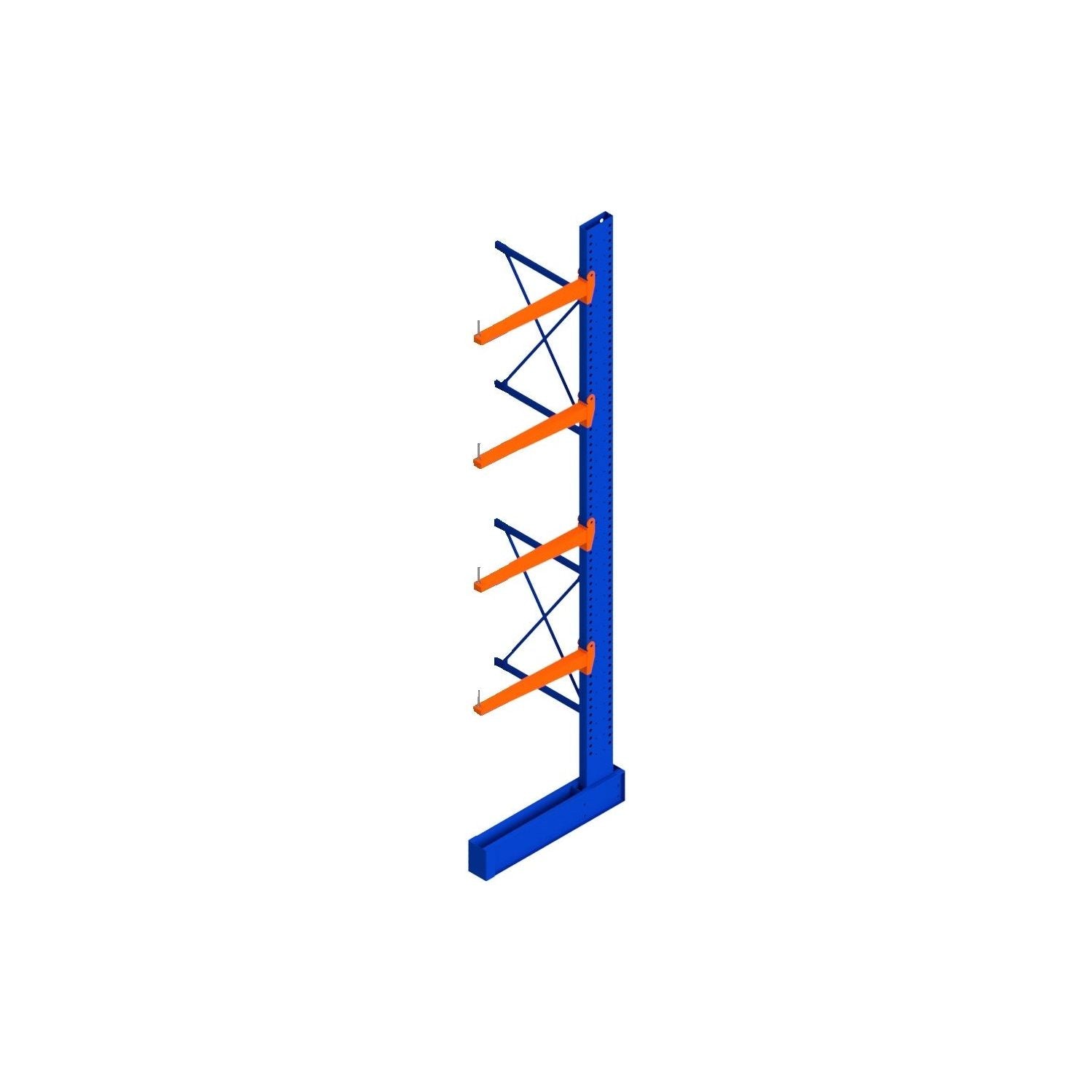

All 5719mm hight columns come with 4 arms per column
You can purchase additional arms if required.

Not quite what you're looking for? Contact us!

Weight Loading for Columns

3658mm high columns - max load per column with 900mm deep arm = 6800kgs
3658mm high columns - max load per column with 1200mm deep arm = 5400kgs

4877mm high columns - max load per column with 900mm deep arm = 5700kgs
4877mm high columns - max load per column with 1200mm deep arm = 4500kgs

5791mm high columns - max load per column with 900mm deep arm = 5100kgs
5791mm high columns - max load per column with 1200mm deep arm = 4000kgs

Weight Loading for Arms

Each 900mm arm has a UDL of 1500kgs
Each 1200mm arm has a UDL of 1020kgs

UDL = (Uniformed Distributed Load)

Measurments

Overall depth for 900mm deep = 1290mm
Overall depth for 1200mm deep = 1590mm

Overall width for 900mm wide bay = 1110mm
Overall width for 1200mm wide bay = 1410mm
Overall width for 1500mm wide bay = 1710mm
Overall width for 1800mm wide bay = 2010mm
