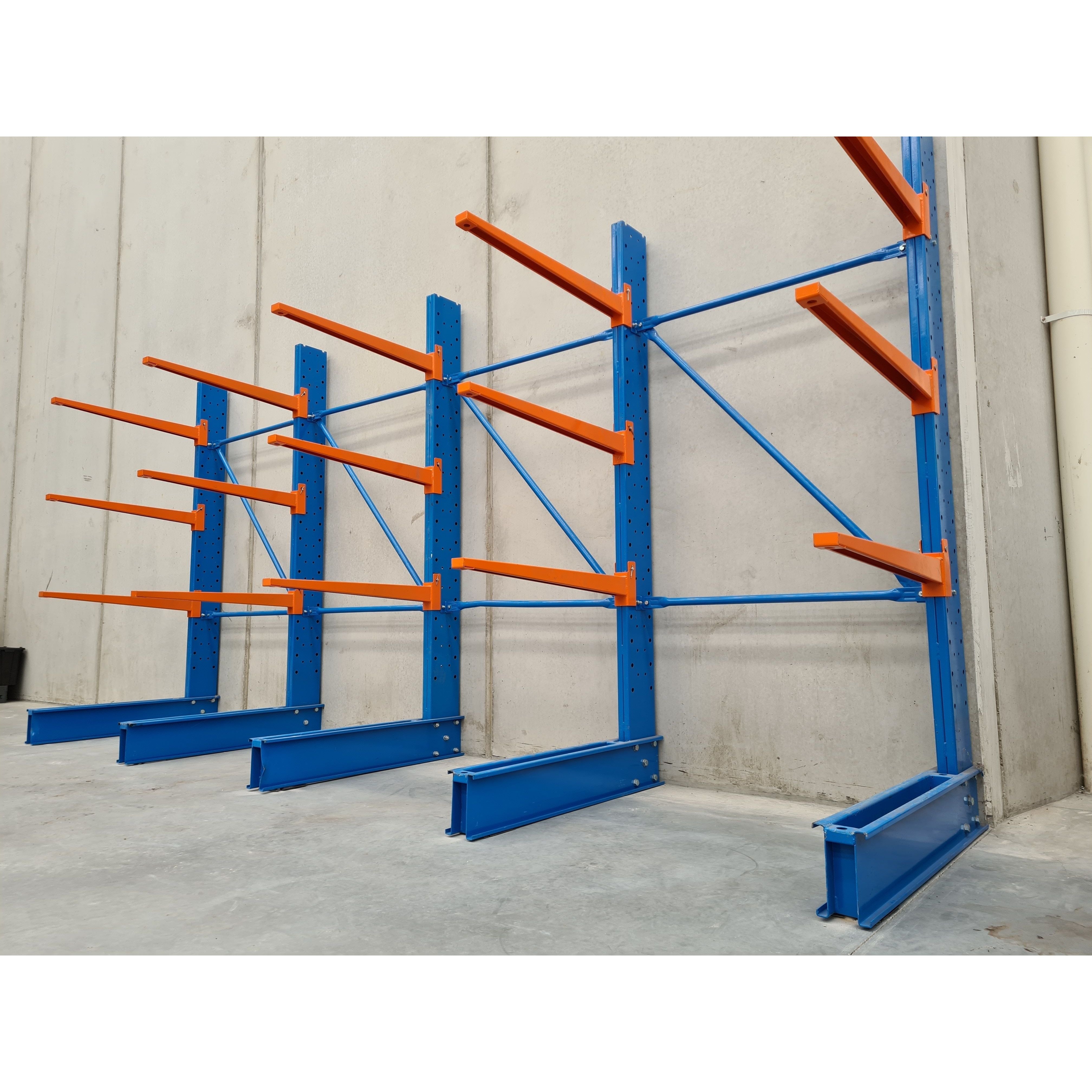

Medium duty cantilever racking is an ideal storage solution for businesses storing long and heavy items. These racks are designed to provide maximum space utilisation and easy access to goods. They are specifically designed to hold items such as timber, pipes, and other long, bulky items.

The main advantage of medium duty cantilever racking is its flexibility. It can be customised to suit the specific storage requirements of your business. These racks can be designed to many heights, widths, or depths to provide optimal storage space. Additionally, they can be easily adjusted to accommodate different load sizes and weights.

Another advantage of medium duty cantilever racking is its durability. Made of high-quality steel, these racks are built to withstand heavy loads and harsh environments. They can be used in warehouses, manufacturing plants, and other commercial settings.

Our medium duty cantilever racking is a versatile and durable storage solution that can help businesses maximise their storage space and increase efficiency. Whether you need to store long and heavy items or want a customisable storage solution, medium duty cantilever racking is an ideal choice.


Double-Sided Cantilever is now available, offering even more versatility and convenience for your needs. This innovative design allows you to maximize your storage space and access items from both sides with ease.

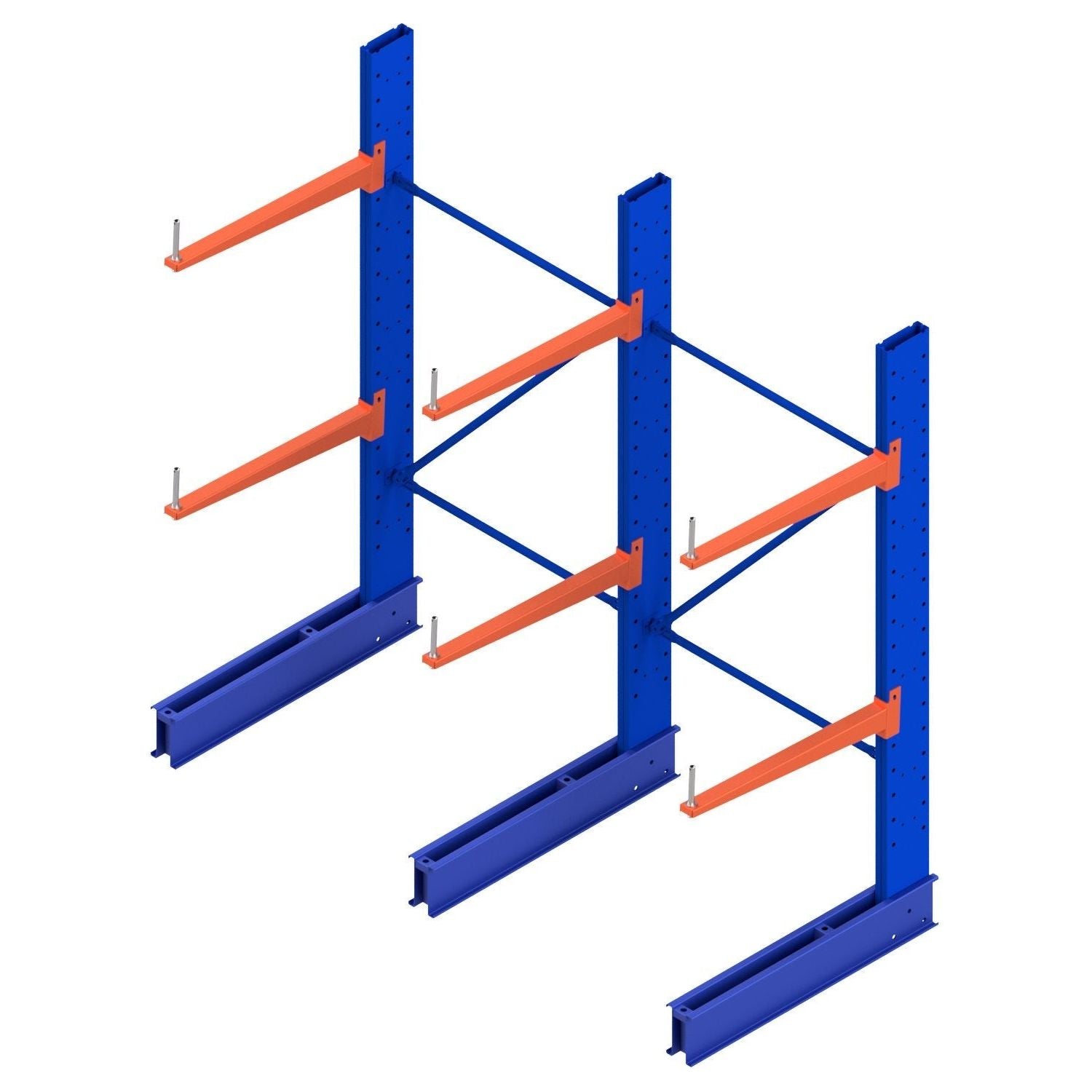

Single Sided Package Includes: 3 x columns, 3 x single sided bases, cross bracing (1200mm Wide Bay Column Centres), arms and all hardware for assembly including levelling plates and floor fixings.

Safe Working Load Sign included

Please note:

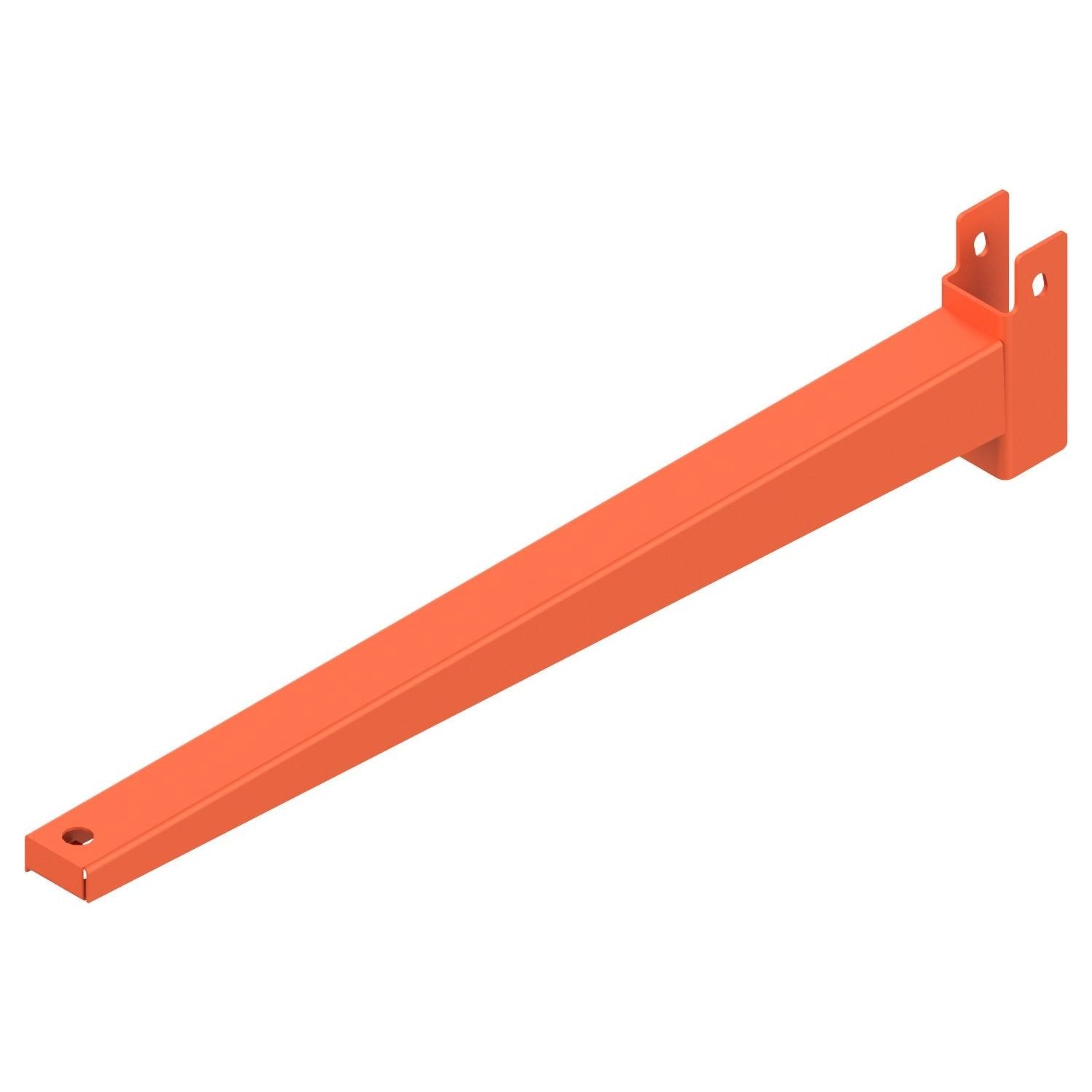

Arms per Column

All 2400mm high columns come with 2 arms per column

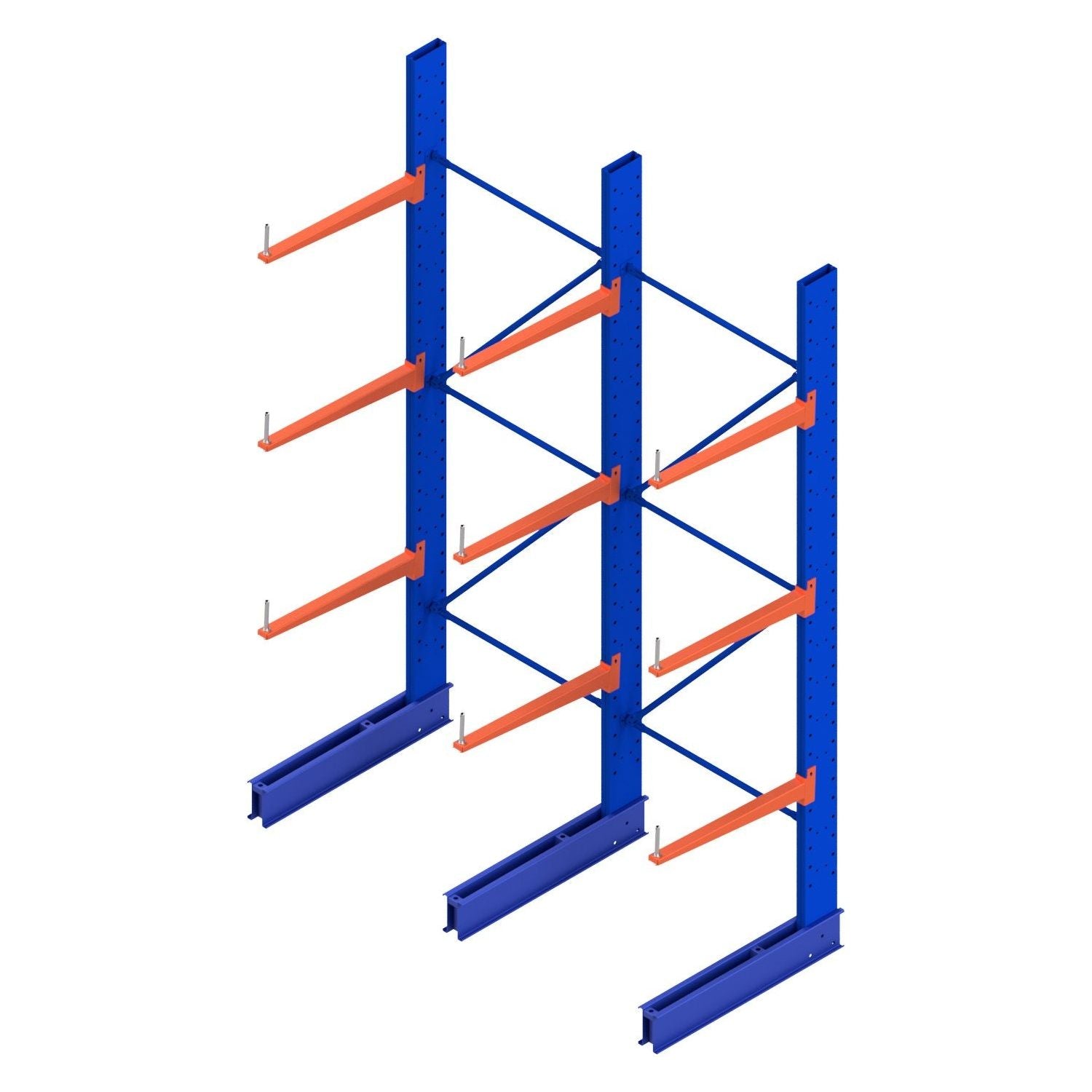

All 3600mm high columns come with 3 arms per column
You can purchase additional arms if required.

To add more arms click here

Not quite what you're looking for? Contact us!

Weight Loading for Columns

2400mm high columns - max load per column with 700mm deep arm = 2600kgs
2400mm high columns - max load per column with 900mm deep arm = 2100kgs
2400mm high columns - max load per column with 1200mm deep arm = 1700kgs

3600mm high columns - max load per column with 900mm deep arm = 2800kgs
3600mm high columns - max load per column with 1200mm deep arm = 2200kgs

*700mm Arms are not supplied with 3600mm high columns

Weight Loading for Arms

Each 700mm arm has a UDL of 600kgs = 1200kgs per level over 2 columns (not exceeding the max load per column)
Each 900mm arm has a UDL of 480kgs = 960kgs per level over 2 columns (not exceeding the max load per column)
Each 1200mm arm has a UDL of 270kgs = 540kgs per level over 2 columns (not exceeding the max load per column)

UDL = (Uniformed Distributed Load)

Measurments

Overall depth for 700mm deep = 950mm
Overall depth for 900mm deep = 1150mm
Overall depth for 1200mm deep = 1450mm

Overall width for 2 bays @ 1200mm wide bay = 2520mm
